    • Polypropylene Horizontal Centrifugal Pump

    Home / Products / Polypropylene Horizontal Centrifugal Pump

    We manufacturer of the polypropylene horizontal centrifugal pump, are introducing our range under “Vijay” Brand name

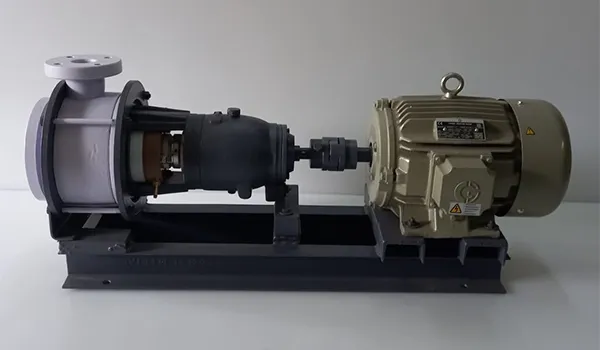

    This polypropylene horizontal centrifugal pump is a technically horizontal single end suction standardized back pull out process pump, specially designed to fulfill the miscellany requirements of the chemical industries. This pump is manufactured using top grade polypropylene copolymer material to convey considerable inertness against chemicals and thereby is also illustrious as a PP pump (polypropylene pump). The entire manufacturing of this PP pump is carried out by means of the moulding process to create a shield of the PP material against water and corrosive chemicals and hence protect all the wet end parts of the pump and impart longer service life to thereof. This polypropylene pump has accredited in assorted industries for delivering no leakage and no failure experience throughout the lifespan, and is apparent confirmation of its ability to outperform even under the harshest conditions.

    The Salient Features of P.P. Horizontal Chemical Process Pump

    • The use of the polypropylene material and moulding construction protects the pump from corrosive chemicals and hence ensure longevity.
    • All the wet end parts are covered through the moulded construction to withstand corrosion and erosion.
    • The impeller is semi-open type hydraulically balanced by back vanes, used in our all pp pumps to suit both clear & polluted fluids.
    • Distance piece of pumps is made from Polypropylene material and hence no corrosion problem and pump leakage problem.
    • The bearing bracket of this Polypropylene pump is made from heavy-duty graded casting coated with anti corrosive paint.
    • Reliable fixing of impeller on the shaft by direct thread
    • The centrifugal design of the pump ensures noise free and vibration free operations.
    • The pump rotating element can be reversed toward the motor without interrupting the suction or deliver pipeline operation, thanks to the back pull out the configuration of the PP pump.
    • The motor stays fixed to base throughout the operation, whereas the pump rotating element can be taken apart into its component without efforts.
    • There is no need of the re-alignment after the reassemble
    • You will find maximum dimensional interchangeability in the design of "VIJAY" Polypropylene Horizontal Centrifugal Pump.
    • "VIJAY" Pumps require minimum spare parts and saves you significant maintenance costs in the long run.

    Applications

    PHOSPHORIC ACID PLANTS

    H3PO4, H2SO4, HF and mixtures with/without solid (gypsum) up to 40% conc.

    GAS WASHING PLANTS

    Scrubbed liquids containing CL2, BR2, F2, I2, SO2, SO3, CO2, NH3 gases with solids

    RAYON PLANTS

    Spin bath solution (H2SO4, ZNSO4, NaSO4, etc.)

    CAUSTIC SODA PLANTS

    Chlorinated brine, conc. HCL, Dilute H2SO4 etc.

    WATER TREATMENT EFFLUENT TREATMENT ELECTRO PLATING PICKLING IN STEEL ROLLING MILLS FILTER PRESS FOR DYES DESCALING PAPER AND FERTILIZER PLANTS
    After Sales Service

    Range Of Performance

    The offered polypropylene pump (PP pump) may possibly run at 1440 & 2880 RPM respectively, and a range of impeller diameter for each pump size gives a wide spread of performance.

    In general the range covers flow up to 100m3/ hr and discharge head up to 50 meters

    After Sales Service

    Our service technicians can meet you any where in INDIA at a short notice spares are available ready stock our constant astaire is to ensure that a "VIJAY" Pump never causes you downtime once you have put it to operation.
